有没有想过在一台小笔记本上处理和分析上亿行的数据？ 网上有很多关于OnTime数据的测试报告，今天让我们也尝试下DuckDB的，如果你想在Windows或者Linux下做测试，可以告诉我你的结果吗？
硬件情况
2014 年购入的 MacBook Pro，
4 核 2.8G i7
16G 内存
1T SSD

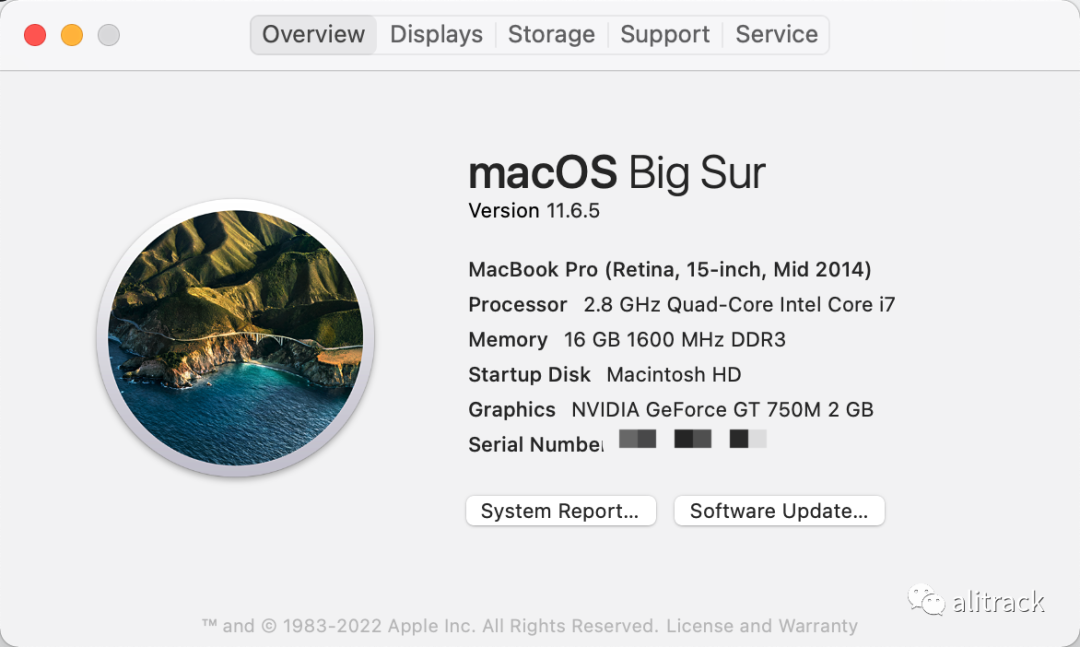

MacBook Pro 信息
数据来源
美国从 1987 年至今持续更新的的民航数据[1]， 2 亿条多些。
准备工作
安装好 Jupyter Lab
安装必要的包
pip install duckdb duckdb-engine ipython-sql ipython-autotime
下载 ontime 数据
wget --no-check-certificate --c \https://transtats.bts.gov/PREZIP/On_Time_Reporting_Carrier_On_Time_Performance_1987_present_{1987..2021}_{1..12}.zip
为了简化下工作，这里我下载了一个合并好的包，
wget --no-check-certificate -c \https://repo.databend.rs/t_ontime/t_ontime.csv.zip
为啥要转成 Parquet？
想较多了解 Parquet 的可以看看我之前的一篇文章什么是 Parquet 文件格式以及为什么要使用它。

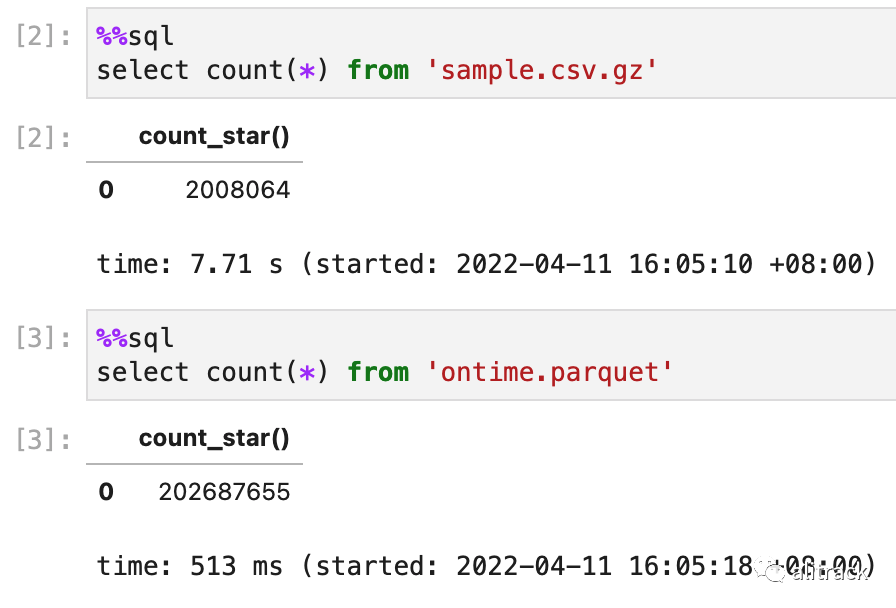

或者直接看个最简单的对比
使用 DuckDB 查询 csv.gz
select count(*) from read_csv_auto('sample.csv.gz',delim='\t') count_star()0 2008064time: 7.82 s (started: 2022-04-11 16:02:55 +08:00)
查询 Parquet 格式
select count(*) from 'ontime.parquet' count_star()0 202687655time: 513 ms (started: 2022-04-11 16:05:18 +08:00)
csv.gz vs parquet
转 Parquet
zip 文件大概 7G, encoding 为 ascii， 因为含有拉丁字符，需要做进一步转换, 转为 gzip 格式，方便 DuckDB 转为 Parquet(snappy 压缩， 11G） 格式，
unzip -p t_ontime.csv.zip|iconv -f latin1 -t utf-8|gzip >t_ontime.csv.gz
本文的查询都仅仅为 SQL 语句，因此可以直接在 DuckDB 命令行下执行，也可以在 Jupyter Notebook 里执行， 我为了做笔记方便，都放到了 Notebook 中。
Notebook 导入必要的包和进行必要的设置，
import warnings; warnings.filterwarnings("ignore")%load_ext autotime%load_ext sql%sql duckdb:///%config SqlMagic.autopandas=True%config SqlMagic.feedback = False%config SqlMagic.displaycon = False%sql pragma threads=4#导入必要的包import pandas as pdimport numpy as np
字段与类型定义
columns = {'Year':'UInt16','Quarter':'UInt8','Month':'UInt8','DayofMonth':'UInt8','DayOfWeek':'UInt8','FlightDate':'Date','Reporting_Airline':'String','DOT_ID_Reporting_Airline':'Int32','IATA_CODE_Reporting_Airline':'String','Tail_Number':'String','Flight_Number_Reporting_Airline':'String','OriginAirportID':'Int32','OriginAirportSeqID':'Int32','OriginCityMarketID':'Int32','Origin':'String','OriginCityName':'String','OriginState':'String','OriginStateFips':'String','OriginStateName':'String','OriginWac':'Int32','DestAirportID':'Int32','DestAirportSeqID':'Int32','DestCityMarketID':'Int32','Dest':'String','DestCityName':'String','DestState':'String','DestStateFips':'String','DestStateName':'String','DestWac':'Int32','CRSDepTime':'Int32','DepTime':'Int32','DepDelay':'Int32','DepDelayMinutes':'Int32','DepDel15':'Int32','DepartureDelayGroups':'String','DepTimeBlk':'String','TaxiOut':'Int32','WheelsOff':'Int32','WheelsOn':'Int32','TaxiIn':'Int32','CRSArrTime':'Int32','ArrTime':'Int32','ArrDelay':'Int32','ArrDelayMinutes':'Int32','ArrDel15':'Int32','ArrivalDelayGroups':'Int32','ArrTimeBlk':'String','Cancelled':'UInt8','CancellationCode':'String','Diverted':'UInt8','CRSElapsedTime':'Int32','ActualElapsedTime':'Int32','AirTime':'Int32','Flights':'Int32','Distance':'Int32','DistanceGroup':'UInt8','CarrierDelay':'Int32','WeatherDelay':'Int32','NASDelay':'Int32','SecurityDelay':'Int32','LateAircraftDelay':'Int32','FirstDepTime':'String','TotalAddGTime':'String','LongestAddGTime':'String','DivAirportLandings':'String','DivReachedDest':'String','DivActualElapsedTime':'String','DivArrDelay':'String','DivDistance':'String','Div1Airport':'String','Div1AirportID':'Int32','Div1AirportSeqID':'Int32','Div1WheelsOn':'String','Div1TotalGTime':'String','Div1LongestGTime':'String','Div1WheelsOff':'String','Div1TailNum':'String','Div2Airport':'String','Div2AirportID':'Int32','Div2AirportSeqID':'Int32','Div2WheelsOn':'String','Div2TotalGTime':'String','Div2LongestGTime':'String','Div2WheelsOff':'String','Div2TailNum':'String','Div3Airport':'String','Div3AirportID':'Int32','Div3AirportSeqID':'Int32','Div3WheelsOn':'String','Div3TotalGTime':'String','Div3LongestGTime':'String','Div3WheelsOff':'String','Div3TailNum':'String','Div4Airport':'String','Div4AirportID':'Int32','Div4AirportSeqID':'Int32','Div4WheelsOn':'String','Div4TotalGTime':'String','Div4LongestGTime':'String','Div4WheelsOff':'String','Div4TailNum':'String','Div5Airport':'String','Div5AirportID':'Int32','Div5AirportSeqID':'Int32','Div5WheelsOn':'String','Div5TotalGTime':'String','Div5LongestGTime':'String','Div5WheelsOff':'String','Div5TailNum':'String',}
csv.gz to Parquet,
copy(select * from read_csv_auto('t_ontime.csv.gz',delim='\t', columns={columns}))to 'ontime.parquet'
创建视图（为了后面 SQL 更简洁）
create or replace view ontime as select * from 'ontime.parquet'
SQL benchmark
Q0. 1.39s
SELECT avg(c1)FROM( SELECT Year, Month, count(*) AS c1 FROM ontime GROUP BY Year, Month);
Q1. 查询从 2000 年到 2008 年每天的航班数,860ms
SELECTDayOfWeek, count(*) AS cFROM ontimeWHERE Year >= 2000AND Year <= 2008GROUP BY DayOfWeekORDER BY c DESC;
Q2. 查询从 2000 年到 2008 年每周延误超过 10 分钟的航班数。1.26s
SELECT DayOfWeek, count(*) AS cFROM ontimeWHERE DepDelay>10AND Year >= 2000 AND Year <= 2008GROUP BY DayOfWeekORDER BY c DESC;
Q3.查询 2000 年到 2008 年每个机场延误超过 10 分钟以上的次数 1.45s
SELECT Origin, count(*) AS cFROM ontimeWHERE DepDelay>10 AND Year>=2000 AND Year<=2008GROUP BY OriginORDER BY c DESCLIMIT 10;
Q4. 查询 2007 年各航空公司延误超过 10 分钟以上的次数 572ms
SELECT IATA_CODE_Reporting_Airline AS Carrier, count(*)FROM ontimeWHERE DepDelay>10 AND Year=2007GROUP BY CarrierORDER BY count(*) DESC;
Q5. 查询 2007 年各航空公司延误超过 10 分钟以上的百分比 1.17s
SELECT qq.Carrier, c, c2, c*100/c2 as c3FROM( SELECT IATA_CODE_Reporting_Airline AS Carrier, count(*) AS c FROM ontime WHERE DepDelay>10 AND Year=2007 GROUP BY Carrier) qJOIN( SELECT IATA_CODE_Reporting_Airline AS Carrier, count(*) AS c2 FROM ontime WHERE Year=2007 GROUP BY Carrier) qq on q.Carrier = qq.CarrierORDER BY c3 DESC;
Q5 优化版本, 622ms
SELECT IATA_CODE_Reporting_Airline AS Carrier, avg(cast(DepDelay>10 as Int8))*100 AS c3FROM ontimeWHERE Year=2007GROUP BY CarrierORDER BY c3 DESC;
Q6. 同上一个查询一致,只是查询范围扩大到 2000 年到 2008 年 2.82s
SELECT q.Carrier, c, c2, c*100/c2 as c3FROM( SELECT IATA_CODE_Reporting_Airline AS Carrier, count(*) AS c FROM ontime WHERE DepDelay>10 AND Year>=2000 AND Year<=2008 GROUP BY Carrier) qJOIN( SELECT IATA_CODE_Reporting_Airline AS Carrier, count(*) AS c2 FROM ontime WHERE Year>=2000 AND Year<=2008 GROUP BY Carrier) qq on q.Carrier=qq.CarrierORDER BY c3 DESC;
Q6 优化版本 1.57s
SELECT IATA_CODE_Reporting_Airline AS Carrier, avg(cast(DepDelay>10 as Int8))*100 AS c3FROM ontimeWHERE Year>=2000 AND Year <=2008GROUP BY CarrierORDER BY c3 DESC;
Q7. 每年航班延误超过 10 分钟的百分比 1.54s
SELECT Year, avg(cast(DepDelay>10 as Int8))*100FROM ontimeGROUP BY YearORDER BY Year;
Q8. 每年更受人们喜爱的目的地 9.92s
SELECT DestCityName, count(distinct OriginCityName) AS uFROM ontimeWHERE Year >= 2000 and Year <= 2010GROUP BY DestCityNameORDER BY u DESC LIMIT 10;
Q8 优化下， 4.17s
SELECT DestCityName,count(OriginCityName) as u from(SELECT DestCityName, OriginCityNameFROM ontimeWHERE Year >= 2000 and Year <= 2010GROUP BY DestCityName, OriginCityName)GROUP BY DestCityNameORDER BY u DESC LIMIT 10;
Q9. 910ms
SELECT Year, count(*) AS c1FROM ontimeGROUP BY Year;
Q10. 9.12s
SELECT min(Year), max(Year), IATA_CODE_Reporting_Airline AS Carrier, count(*) AS cnt, sum(cast(ArrDelayMinutes>30 as Int8)) AS flights_delayed, round(sum(cast(ArrDelayMinutes>30 as Int8))/count(*),2) AS rateFROM ontimeWHERE DayOfWeek NOT IN (6,7) AND OriginState NOT IN ('AK', 'HI', 'PR', 'VI') AND DestState NOT IN ('AK', 'HI', 'PR', 'VI') AND FlightDate < '2010-01-01'GROUP by CarrierHAVING count(*)>100000 and max(Year)>1990ORDER by rate DESCLIMIT 1000;
这个速度你还满意吧？
有兴趣的可以尝试使用 ClickHouse 导入该数据，并做个对比测试，反正我的电脑，经过一番折腾后，风扇狂转，内存溢出，然后我放弃了。
从上面的效果看，如果配合Superset， 是不是可以做到单机轻松分析上亿数据（并且跨平台支持）。
参考资料
[1]
民航数据: https://transtats.bts.gov/
